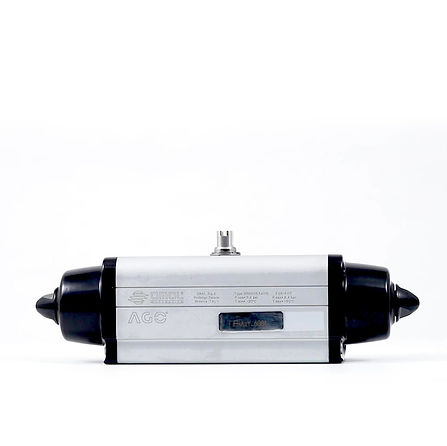

AGO

Pneumatic Actuators

The historical compact quarter turn scotch-yoke actuator of OMAL. Reliability, durability, compactness, lightness, torque empowered with lever-amplifier effect, energy saving, no need of lubrication and maintenance.

Everything in one product.

Details

General features

Type

Scotch yoke

Body material

Aluminium

Nominal torque

DA (Double acting):

8 Nm ÷ 8000 Nm

70 in-lbs ÷ 70806 in-lbs

SR (Spring return):

15 Nm ÷ 4000 Nm

133 in-lbs ÷ 35403 in-lbs

Variations

Double acting

Spring return N.C. - N.O.

Size

DA 8 ÷ DA 8000

SR 15 ÷ SR 4000

Options

Low temp. version:

-50°C / -58°F

High temp. version:

+150°C / +302°F

Adjustable rotation;

Surface treatments;

Certifications

Ex CE/UKCA

SIL (up to SIL3)

Maintenance

AGO ACTUATOR WORKING DEMO

DA ACTUATOR

SR N.C. ACTUATOR
